TERM UNDERSLAB | WATERPROOFING BARRIER

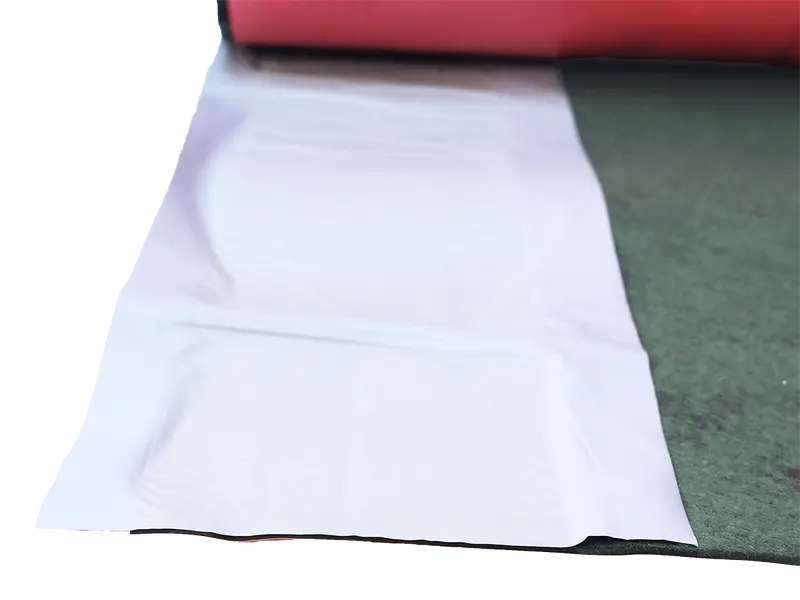

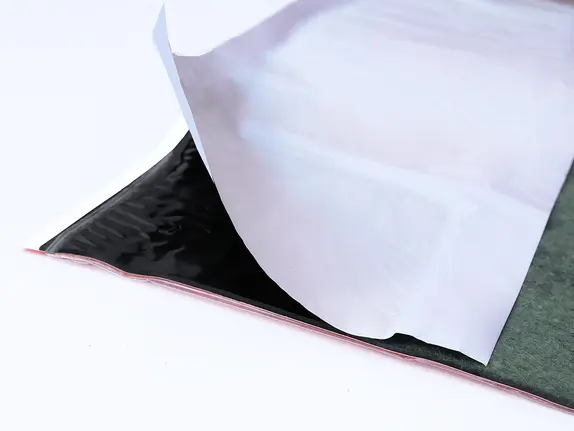

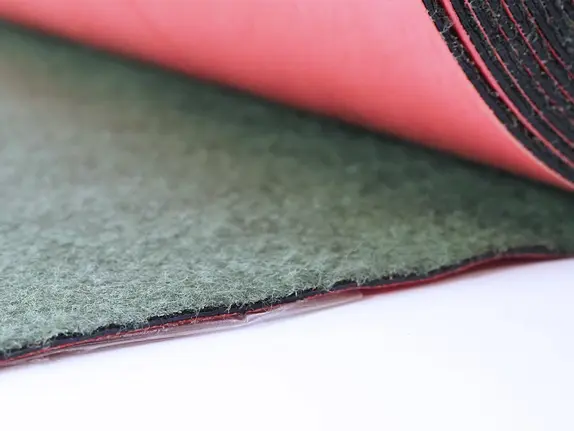

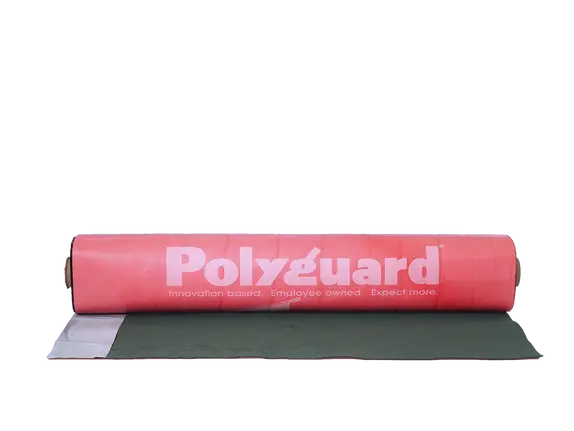

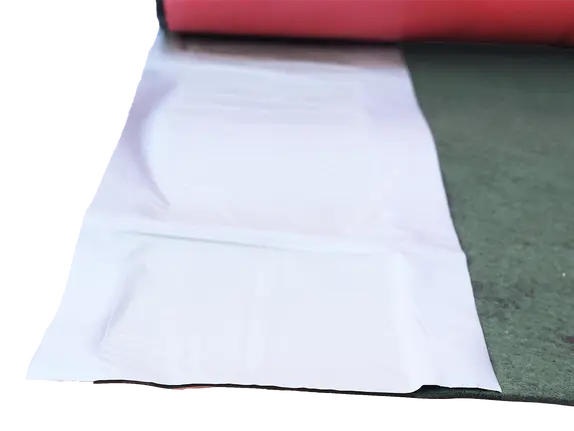

TERM Underslab Water|Termite Barrier is a strong sheet barrier with 8.5 mils high strength polyethylene backing laminated to a 69-mil thick layer of TERM barrier sealant integrated into a top layer of high strength non-woven geotextile fabric. Total membrane thickness is factory controlled at 95 mils. On the fabric side, a 4" wide lap of waterproofing adhesive compound is left exposed along one edge with a removable silicone coated release sheet. This adhesive is exposed just prior to the installation of the adjacent roll, which creates a 4" wide self-adhesive overlap seam. TERM Underslab Water I Termite Barrier is the thickest in the industry, ideal for your most abusive jobsites. When you need a reliable fully-adhered waterproofing with termite barrier, choose TERM.

TERM Underslab Barrier PA030108 edit
TERM Underslab Barrier PA030105 edit
TERM Underslab Barrier PA030099 edit
TERM Underslab Barrier PA030108 edit
TERM Underslab Barrier PA030109 edit
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

Retrieving data. Wait a few seconds and try to cut or copy again
Physical Barrier to termites/water/radon the only 3-in1 in it's class
Extremely high (224 lb.) puncture resistance/resists severe abuse incurred during slab placement
Ability to handle hydrostatic head pressure up to 231 feet
The puncture resistance comes from top layer of highway grade geotextile and the bottom layer of high strength polyethylene film
The only physical termite barrier with over 20 years of testing and an evaluation report by the ICC (Internation Code Council) AC 380 ESR 3632
Self-healing sealant will close up small punctures
30 day UV exposure
