Underslab Membrane

Underslab Installation Video with Voiceover
Video De Instalacion de la Membrana Underslab
Not purchasable online

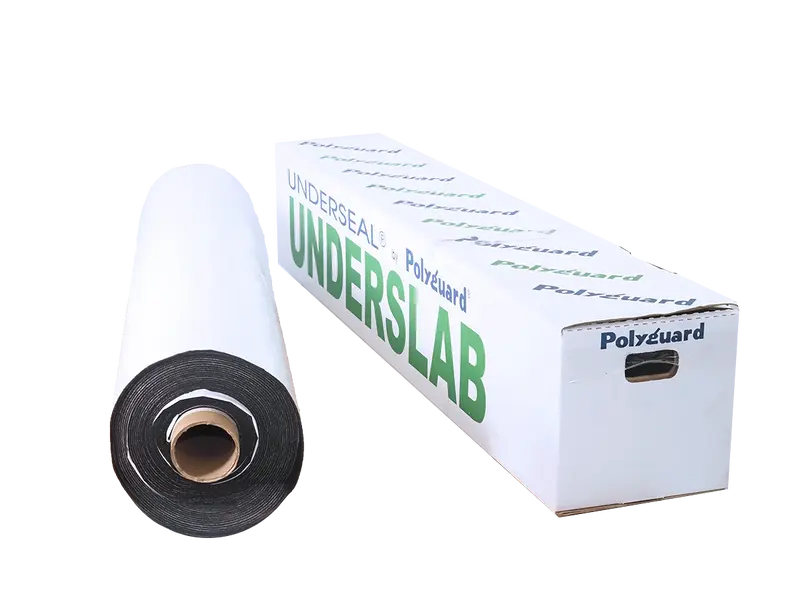

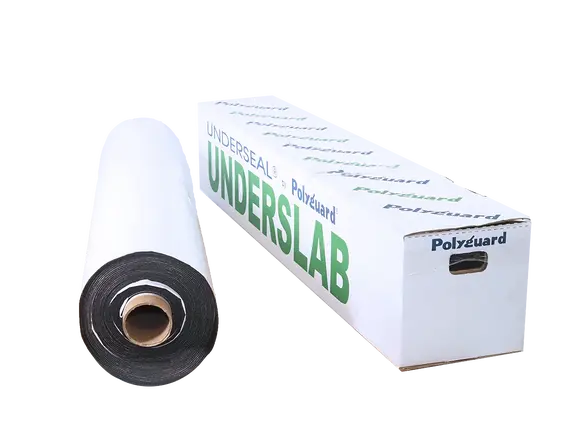

Underseal® Underslab Membrane - MIssing - MISSING

(Formerly 850)Underslab Membrane is a tough, 85-mil pre-concrete pour waterproofing membrane/vapor barrier designed to virtually eliminate water and v...

Overview

(Formerly 850)

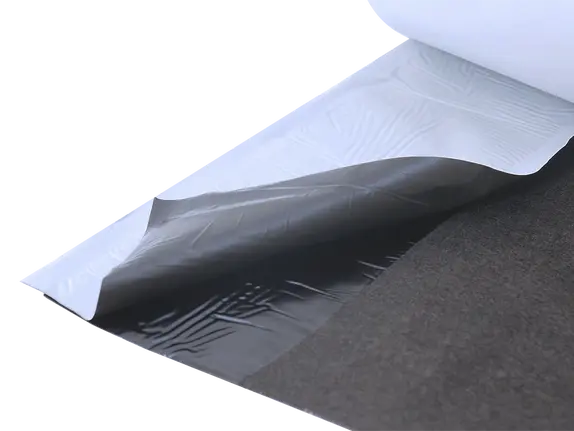

Underslab Membrane is a tough, 85-mil pre-concrete pour waterproofing membrane/vapor barrier designed to virtually eliminate water and vapor transmission through concrete slabs & elevator pits.

Underslab Membrane provides a continuous seal underneath the foundation slab. A strong mechanical bond is developed between the membrane and concrete at the time of pouring as the concrete intermingles with the fibers of the nonwoven geotextile. A strong adhesive bond is created when the static load and thermal reactive heat of the concrete slab causes sealant/adhesive compound to have an intimate contact with the concrete surface preventing water migration. Underslab Membrane is typically installed horizontally over a prepared subbase such as compacted soil, mud slab or #57 stone. 85 mil Underslab can also be used in vertical applications.



Underslab Membrane - Data Sheet
pdf
Underslab Membrane - Guide Spec
docx
pdf
Underslab Membrane - Product Overview Sheet
pdf
Underslab Membrane - Materials Checklist
pdf
Underslab Membrane - HPD
pdf
Underslab Membrane - SDS
pdf

Companion Products

Here are some helpful items that work well with what you're buying. They make your project easier and better.

Features & Benefits

Lasting Durability: Tough 3-layer composite membrane - Technology that has stood the test of time.
Outstanding Puncture Resistance: 2 times higher than the new AC 527 building code requirement - Better protection against backfill damage.
Strong Mechanical Bond: Our inner fiberous layer embeds itself into the cured concrete creating a very strong mechanical bond - ensures our waterproofing system will stay in place as the building and outside soil move during the building's lifetime.
Resistant to Water Migration: An adhesive bond is created when heat from the concrete slab while curing , causes our compound to melt onto the concrete's positive side surface creating a continuous sealed floor.
Jobsite Adaptability: Flexible material that adapts to job site irregularities for ease of installation.
Superior Joints: Strong laps seams create a long lasting, water tight system - Outperforms the new AC 527 standard (ASTM 1876) by more than 150%.
Crack Protection: Underslab is thicker than most competitive products giving it stress-absorbing and elongation properties that maintain a watertight seal if cracks develop in the base material or the slab.
