TERM WEEP & VENT BARRIER

TERM Weep and Vent is a pre-made vent specially designed for brick homes during the installation phase. Each weep and vent must be inserted by the mason as they are placing the mortar. When used as a weep, TERM Weep and Vent Barrier should be installed horizintally (1.5" side vertical) every 24" O.C. or at every head joint or as specified. It must be installed on top of the flashing. The bottom of the cavity must be protected by an approved cavity protection systems for mortar droppings.

thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

For new construction only, cannot be retro-fitted

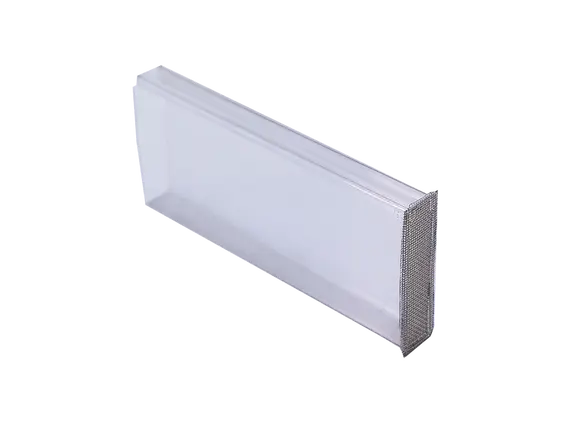

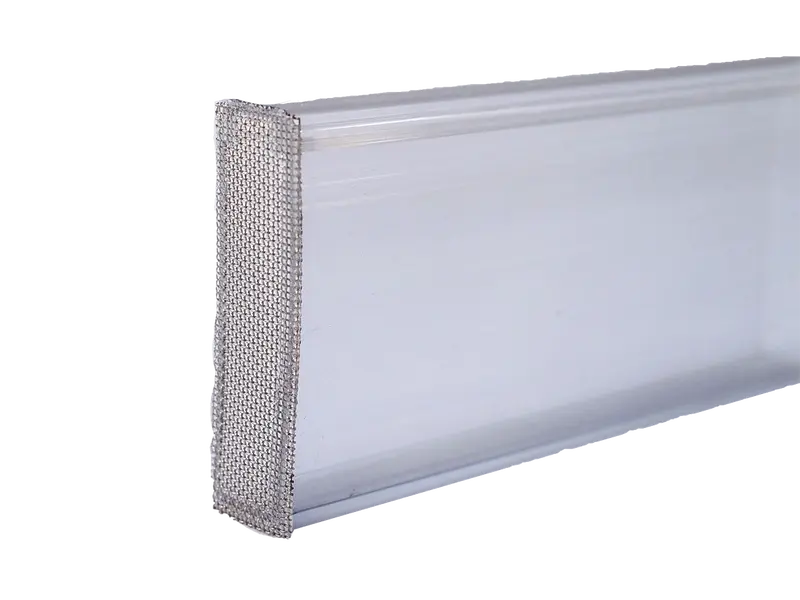

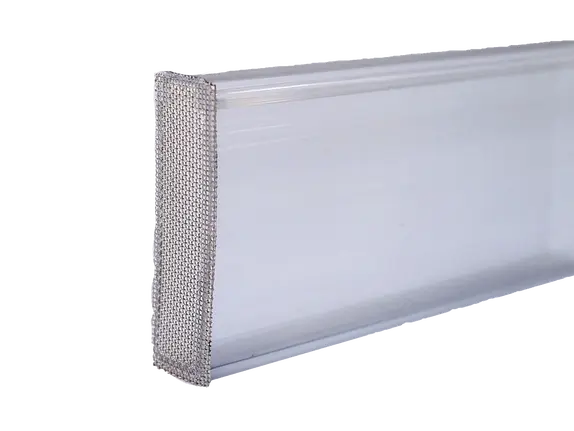

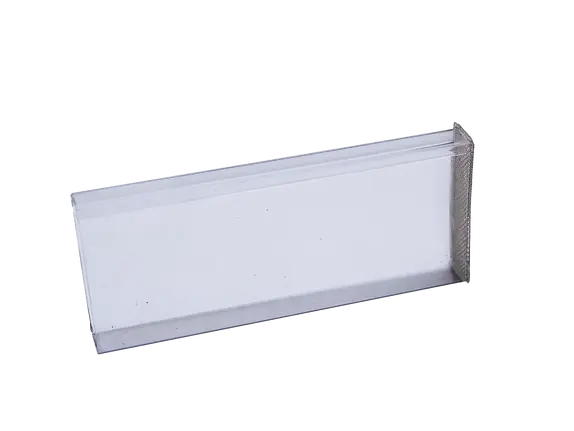

Each weep measures 3/8" x 1.5" x 4" rectangular PETG plastic frame, a stainless steel mesh screen with 0.017" openings is melt-bonded to the plastic frame
Termite and Insect physical barrier

Product Resources

Resource Icon
TERM Weep / Vent Barrier - Detail - Installation Sequence (TM3)
