650 Sheet Membrane

650 Sheet Membrane is a strong, pliable, 60-mil, post-concrete pour self-adhesive waterproofing membrane/vapor retarder that virtually eliminates water and vapor transmission through concrete walls & slabs. 650 Sheet Membrane is designed for use on foundation walls, mud slabs, sills and spandrel beams, tunnels, plaza decks, parking garages, and related applications where waterproofing is critical. It may also be used on wood or concrete block structures and insulated concrete forms (ICF).

650 Sheet Membrane is available in the following sizes: 36″ x 66.7′ and 48″ x 50′ rolls.

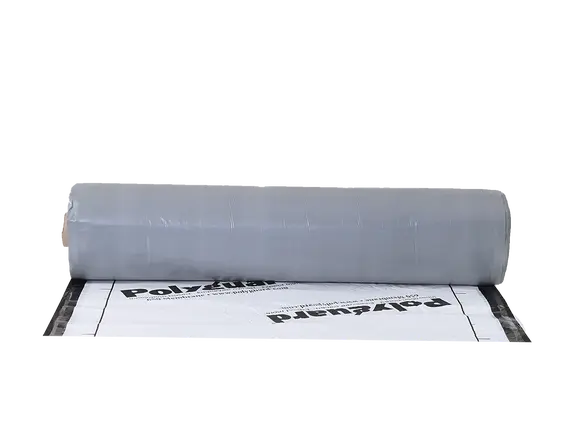

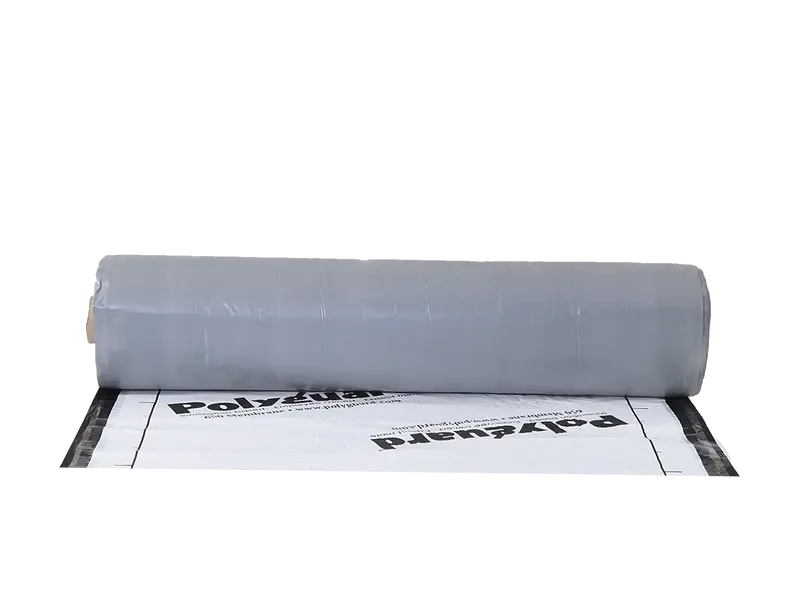

650 Sheet 36 IN PA060122 edit

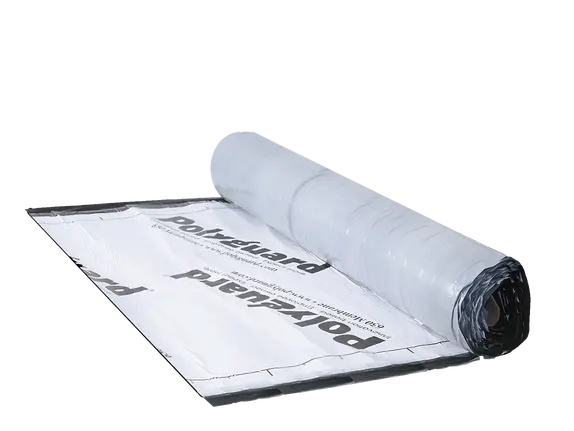

ARCH 650 Membrane 48 IN PA060143 edit
ARCH 650 Membrane 36 IN PA060126 edit

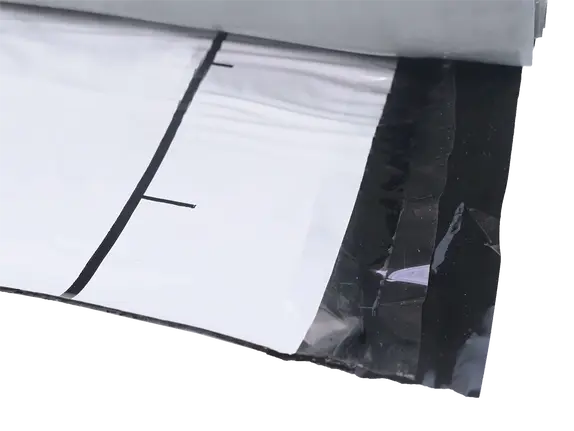

ARCH 650 Membrane 48 IN PA060146 edit

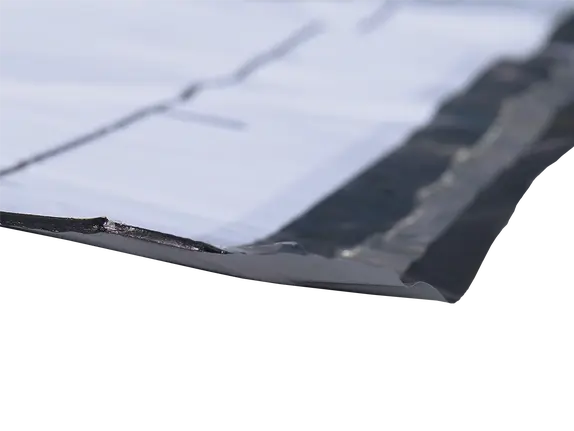

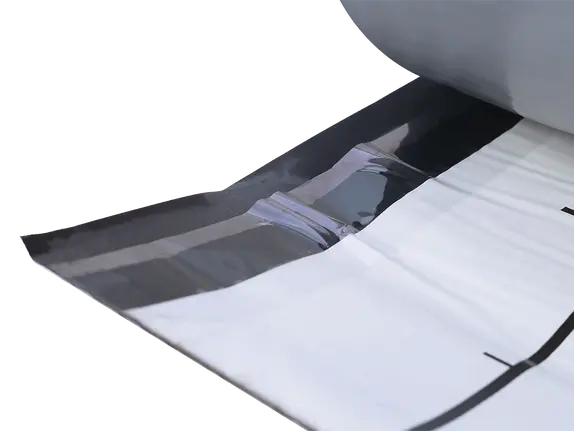

ARCH 650 Membrane 36 IN PA060127 edit
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

Strong, self-adhering sheet membrane with a thick, high strength, tough co-extruded backing.
Outstanding Puncture Resistance: 2 times higher than the new AC 527 requirement when installed with our Polyflow drain board as a system - Better protection against backfill damage.
Superior Joints: Strong laps seams create a long lasting, water tight system - Outperforms the new AC 527 standard (ASTM 1876) by more than 2 times the minimum requirement.
Jobsite Adaptability: Flexible material that adapts to job site irregularities for ease of installation.
VERTICAL – designed for application to the exterior sides of vertical concrete foundation walls, tunnels, and related applications where waterproofing is critical.
650 Sheet Membrane can be utilized in the Dual Core System that capitalizes on both the advantages of a fluid-applied and sheet-applied membrane in a single system.

Product Resources

Resource Icon
650 Membrane - Data Sheet
Resource Icon
650 Membrane - Guide Spec
Resource Icon
650 Membrane- Product Information Sheet
Resource Icon
650 Membrane Balcony Detail - Data Sheet
Resource Icon
Stretch Flex, LM-85 SSL, 650 Membrane, PRM - Data Sheet
Resource Icon
Dual Core Horizontal Waterproofing With Stretch Flex (Below Grade) - Guide Spec
Resource Icon
Dual Core Horizontal Waterproofing With LM 85 SSL - Guide Spec
Resource Icon
650 Membrane - Materials Checklist
Resource Icon
650 Membrane - HPD
Resource Icon
650 Membrane - SDS
Resource Icon
650 Membrane - Installation VERTICAL

Product Details

650 Membrane - Detail Set (WP1-15)
PDF
650 Membrane - Detail - Self Adhered Repair Patch (WP1)
650 Membrane - Detail - Poured Concrete Or CMU Planter Waterproofing (WP2)
650 Membrane - Detail - Vertical Wall Application (WP3)
650 Membrane - Detail - Horizontal Penetration Waterproofing (WP4)
650 Membrane - Detail - Tunnel Waterproofing (WP5)
650 Membrane - Detail - Horizontal Expansion Joint Cover (WP6)
650 Membrane - Detail - Horizontal Slab At Wall Termination (WP7)
650 Membrane - Detail - Dual Level Drain (WP8)
650 Membrane - Detail - Top Of Interior Floor 12 Inches And Under From Top Of Footer (WP9)
650 Membrane - Detail - Top Of Interior Floor Is Greater Than 12 Inches From Top Of Footer (WP10)
650 Membrane - Detail - Vertical Wall Expansion Joint Cover (WP11)
650 Membrane - Detail - Hot Applied Rubber Tie In To Self Adhered Membrane (WP12)
650 Membrane - Detail - Field Formed Self Adhered Outside Corner (WP13)
650 Membrane - Detail - Vertical Wall Penetration (WP14)
650 Membrane - Detail - Top Of Wall Termination Options (WP15)
