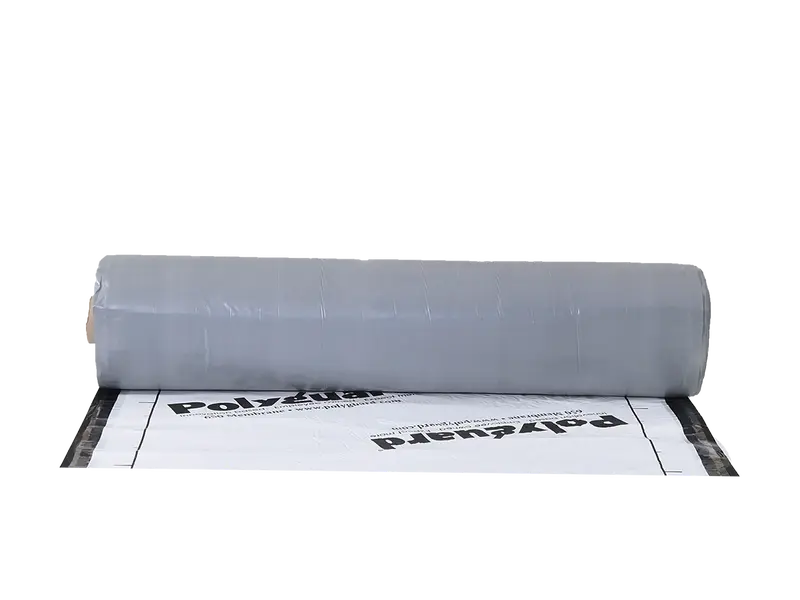

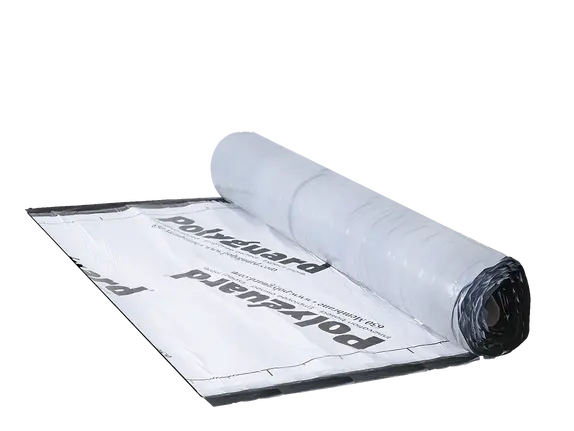

650 Membrane

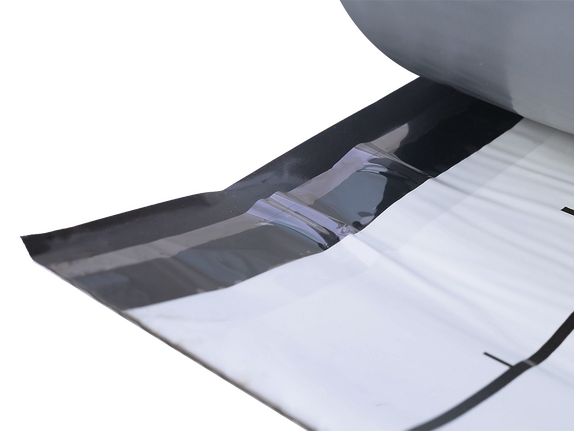

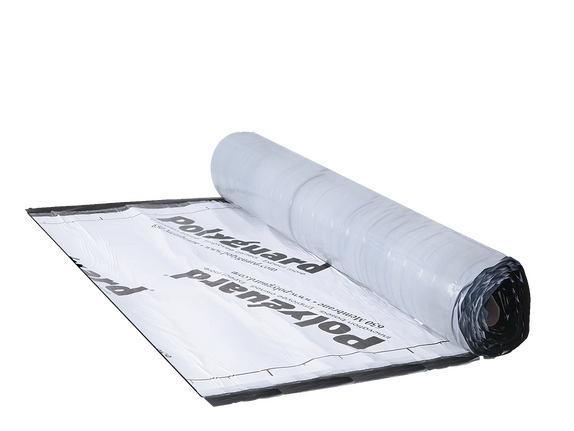

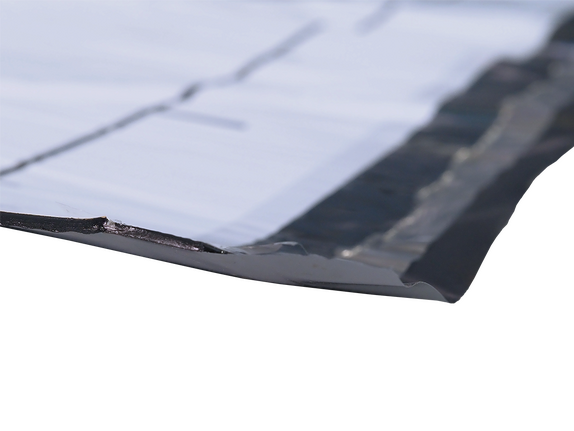

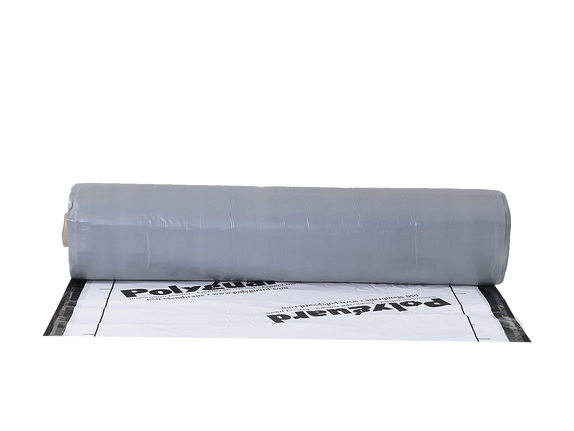

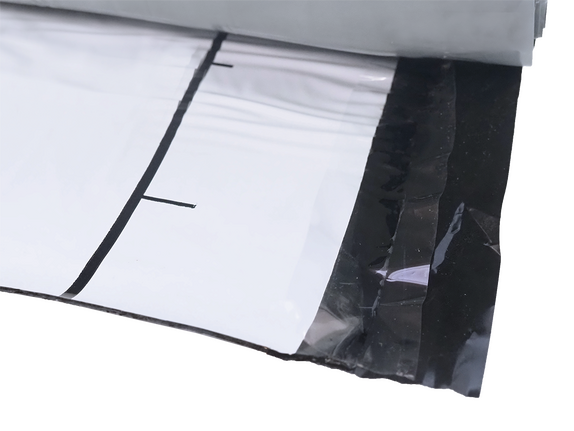

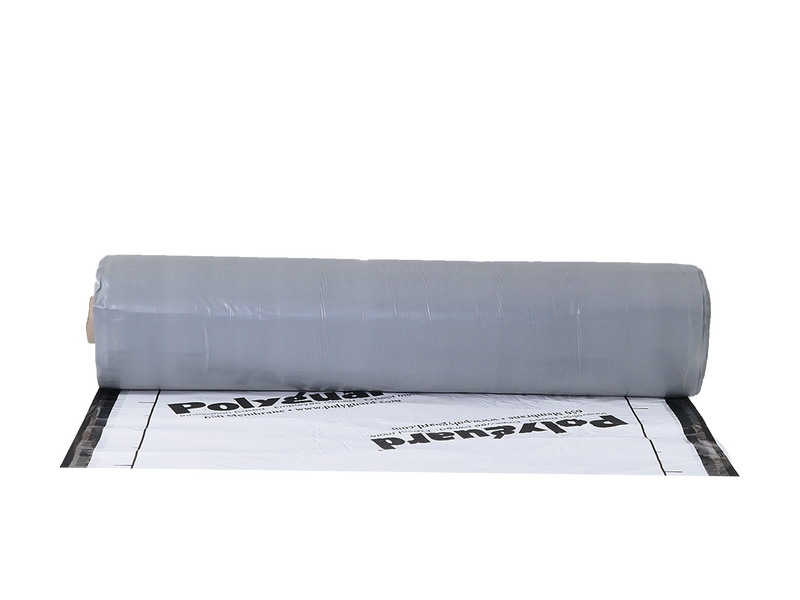

| 650 Membrane is a strong, pliable, 60-mil, post-concrete pour self-adhesive waterproofing membrane/vapor retarder that virtually eliminates water and vapor transmission through concrete walls & slabs. 650 Membrane is designed for use on foundation walls, mud slabs, sills and spandrel beams, tunnels, plaza decks, parking garages, and related applications where waterproofing is critical. It may also be used on wood or concrete block structures and insulated concrete forms (ICF). 650 Membrane is available in the following sizes: 36″ x 66.7′ and 48″ x 50′ rolls. |
Features & Benefits
Strong, self-adhering sheet membrane with a thick, high strength, tough co-extruded backing.
Outstanding Puncture Resistance: 2 times higher than the new AC 527 requirement when installed with our Polyflow drain board as a system - Better protection against backfill damage.
Superior Joints: Strong laps seams create a long lasting, water tight system - Outperforms the new AC 527 standard (ASTM 1876) by more than 2 times the minimum requirement.
Jobsite Adaptability: Flexible material that adapts to job site irregularities for ease of installation.
VERTICAL – designed for application to the exterior sides of vertical concrete foundation walls, tunnels, and related applications where waterproofing is critical.
650 Membrane can be utilized in the Dual Core System that capitalizes on both the advantages of a fluid-applied and sheet-applied membrane in a single system.
Product Resources
650 Membrane - Data Sheet
650 Membrane- Product Information Sheet
650 Membrane Balcony Detail - Data Sheet
Stretch Flex, LM-85 SSL, 650 Membrane, PRM - Data Sheet
650 Membrane - Materials Checklist
650 Membrane - HPD
650 Membrane - SDS
650 Membrane - Installation VERTICAL
Product Details
650 Membrane - Detail Set (WP1-15)
650 Membrane - Detail - Top Of Interior Floor Is Greater Than 12 Inches From Top Of Footer (WP10)
