650 TRM

$164.65
TERM® Non-Chemical Termite Barrier – Waterproofing and Termite Protection of ICF Foundations

650 TRM

650 TRM is a 36" x 66.7' long roll (200 sf) waterproofing + termite barrier for vertical below-grade walls is your solution to post-applied waterproof...
$164.65

Overview

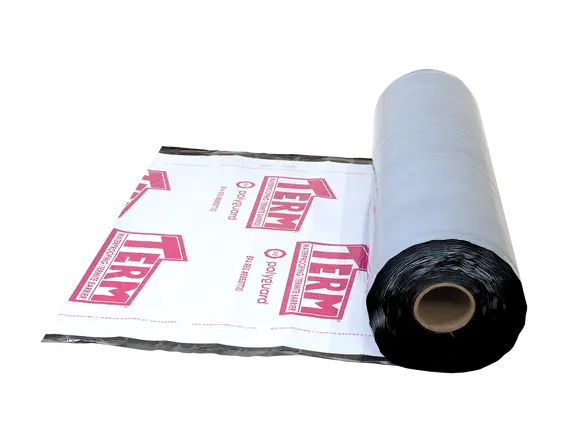

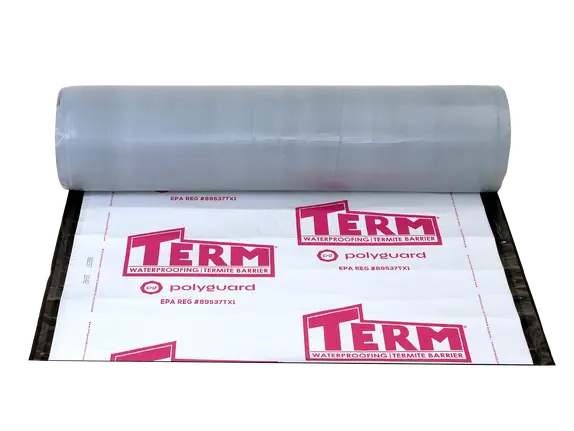

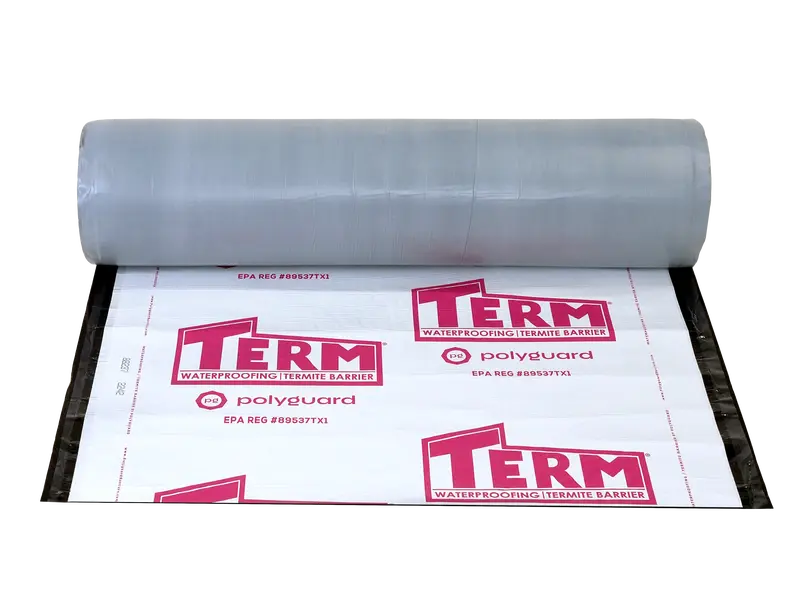

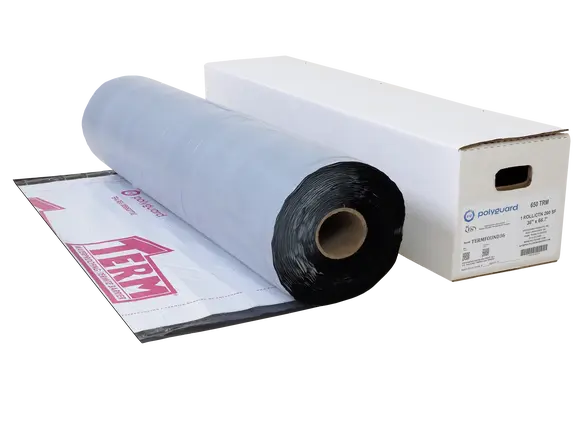

650 TRM is a 36" x 66.7' long roll (200 sf) waterproofing + termite barrier for vertical below-grade walls is your solution to post-applied waterproofing. This 68-mil thick, 200 sf roll will yield approximately 180 sf of waterproofing after overlaps and endlaps. Choose one of the required liquid adhesive primers: 650 LT Liquid Adhesive or California Sealant for Concrete or CMU walls, 650 WB Liquid Adhesive for ICF, and foamed plastic substrates. Meets ICC AC 380 Acceptance Criteria, the only waterproofing membrane that does.

Since 2002, hundreds of foundations across the United States have been protected with 650 TRM to exclude both water and termites. 650 TRM is a “peel and stick” barrier membrane used on concrete. Polyguard waterproofing membranes (without termite exclusion) have been used worldwide on both commercial and residential construction since 1970. Research and testing of termite and pest exclusion, in cooperation with scientists at Texas A&M’s Urban and Structural Entomology Laboratory, began in 1999. Today, 650 TRM is a key part of a building envelope system with waterproofing and termite exclusion.

650 TRM (for Concrete Foundations) - Data Sheet
650 TRM (for ICF Foundations) - Data Sheet
650 TRM - Guide Spec
650 TRM - Product Overview Sheet
650 TRM - Materials Checklist
650 TRM - Installation Guide - Vertical Concrete Walls
650 TRM - HPD
650 TRM - SDS

Product Resources

650 TRM - Detail Set (WPT1-15)
  • TERM
  • Detail(s)
650 TRM - Detail - Repair Patch (WPT1)
  • TERM
  • Detail(s)
650 TRM - Detail - Poured Concrete Or CMU Planter Waterproofing (WPT2)
  • TERM
  • Detail(s)
650 TRM - Detail - Concrete Foundation Wall Overview (WPT3a)
  • TERM
  • Detail(s)
650 TRM - Detail - ICF Foundation Wall Overview (WPT3b)
  • TERM
  • Detail(s)
650 TRM - Detail - Horizontal Penetration (WPT4)
  • TERM
  • Detail(s)
650 TRM - Detail - Tunnel Waterproofing (WPT5)
  • TERM
  • Detail(s)
650 TRM - Detail - Horizontal Expansion Joint Cover (WPT6)
  • TERM
  • Detail(s)
650 TRM - Detail - Horizontal Slab at Wall Transition (WPT7)
  • TERM
  • Detail(s)
650 TRM - Detail - Dual Level Drain (WPT8)
  • TERM
  • Detail(s)
650 TRM - Detail - Foundation Wall and Bottom Termination at Footer (WPT9)
  • TERM
  • Detail(s)
650 TRM - Detail - Top of Interior Floor Is Greater Than 12 Inches From Top of Footer (WPT10)
  • TERM
  • Detail(s)
650 TRM - Detail - Expansion Joint Cover (WPT11)
  • TERM
  • Detail(s)
650 TRM - Detail - Hot Applied Rubber Tie In 650 TRM (WPT12)
  • TERM
  • Detail(s)
650 TRM - Detail - Field Formed Self Adhered Outside Corner (WPT13)
  • TERM
  • Detail(s)
650 TRM - Detail - Wall Penetration (WPT14)
  • TERM
  • Detail(s)
650 TRM - Detail - Top Termination Options (WPT15)
  • TERM
  • Detail(s)
ICC-ES Evaluation Report
  • TERM
  • ICC-ES Evaluation Report

Features & Benefits

Strong, pliable, self-adhesive sheet
4-mil high density polyethylene film bonded to 64 mils of barrier sealant = 68 mils thick
Formulated for low temperature application down to 30°F (-1°C)
No waiting is required before backfilling. Backfill material should be dry sand or dry soil dirt
The only physical termite barrier with over 2 decades of testing and an evaluation report by the ICC (Internation Code Council) AC 380 ESR 3632
30 day UV exposure
