Blindside Membrane

Underseal Blindside Membrane Installation Video

Blindside Membrane

Blindside Membrane is a tough, 73-mil pre-concrete pour waterproofing membrane/vapor barrier designed to virtually eliminate water and vapor transmiss...

Overview

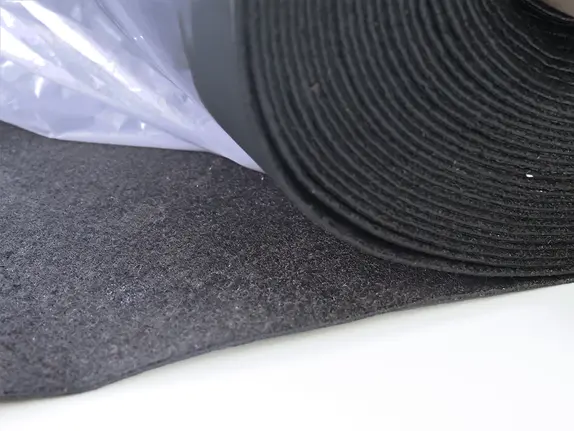

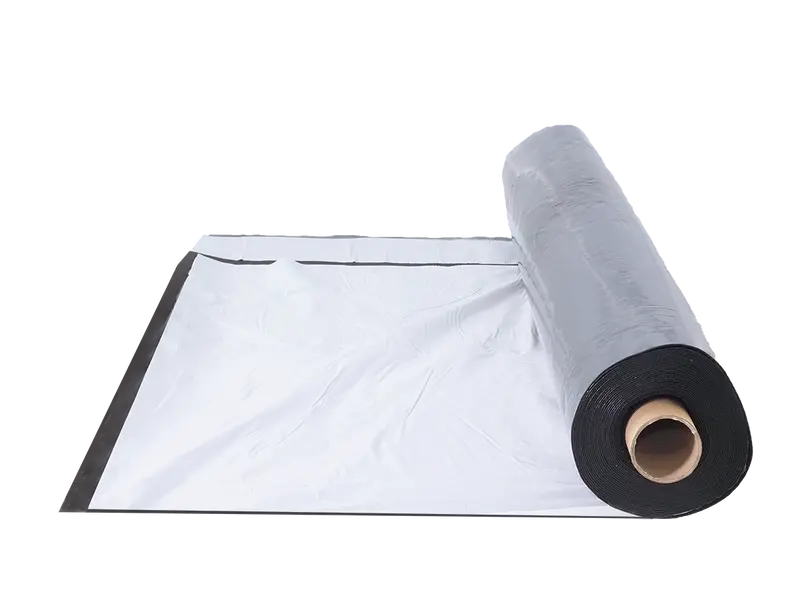

Blindside Membrane is a tough, 73-mil pre-concrete pour waterproofing membrane/vapor barrier designed to virtually eliminate water and vapor transmission through below grade concrete walls.

Blindside Membrane is used as a waterproofing membrane where vertical, positive-side waterproofing is required to be installed before the foundation walls are poured. A strong mechanical bond is developed between the membrane and concrete at the time of pouring as the concrete intermingles with the fibers of the nonwoven geotextile. A strong adhesive bond is created when the static load and thermal reactive heat of the concrete slab causes sealant/adhesive compound to have an intimate contact with the concrete surface preventing water migration. With both a mechanical and adhesive bond, the concrete will be tightly sealed and bonded to the membrane, creating superior protection against moisture intrusion. 73-mil Blindside can also be used in certain horizontal applications. Contact Polyguard for more information.

Blindside Membrane - Data Sheet
pdf
Blindside Membrane - Guide Spec
docx
pdf
Blindside Membrane - Product Overview Sheet
pdf
Blindside Membrane - Materials Checklist
pdf
Blindside Membrane - HPD
pdf
Blindside Membrane - SDS
pdf

Companion Products

Here are some helpful items that work well with what you're buying. They make your project easier and better.

Product Resources

Blindside Membrane - Detail Set (BS1-17)
  • Architectural
  • Detail(s)
PDF
Blindside Membrane - Detail - Over View Earth Retention System (BS1)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Over View 4 Inch Selvage Lap Seam And Fasteners (BS2)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Embedded Tie In To 650 or PRM (BS3)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Penetration Rough Fit Around Penetration Sidewall (BS4)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Soil Nail Stud Plate Condition (BS5)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Reinforced Side Lap Seam (BS6)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - End Lap (BS7)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Repair Patch Over Damage Less Than 2 Inches (BS8)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Repair Patch Over Damage Greater Than 2 Inches (BS9)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Blindside With Total Flow Tie In To (BS10)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Tie Back Soil Nail Head (BS11)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Tie In To 650 Or PRM (BS12)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Vertical Termination Of 650 Or PRM To (BS13)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Tie In To 650 Or PRM Outside Corner (BS14)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Poly Cover Over The Tie Back Soil Nail Assembly (BS15)
  • Architectural
  • Detail(s)
Blindside Membrane - Detail - Top Of Wall Termination Mechanically Fastened (BS16)
  • Architectural
  • Detail(s)
DWG PDF
Blindside Membrane - Detail - Top Of Wall Embedded Termination (BS17)
  • Architectural
  • Detail(s)
DWG PDF

Features & Benefits

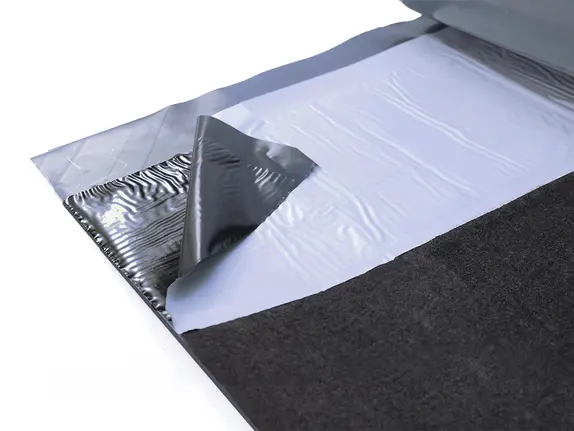

Lasting Durability: Tough 3-layer composite membrane - Technology that has stood the test of time.
Outstanding Puncture Resistance: 2 times higher than the new AC 527 building code requirement - Better protection against backfill damage.
Strong Mechanical Bond: Our inner fiberous layer embeds itself into the cured concrete creating a very strong mechanical bond - ensures our waterproofing system will stay in place as the building and outside soil move during the building's lifetime.
Resistant to Water Migration: An adhesive bond is created when heat from the concrete wall while curing , causes our compound to melt onto the concrete's positive side surface creating a continuous sealed structure.
Horizontal Installation: Blindside Membrane may also be installed horizontally over prepared sub-base such as mudslab, carton forms, fine crushed beds/pea gravel or Polyguard approved drainboard.
Superior Joints: Strong laps seams create a long lasting, water tight system - Outperforms the new AC 527 standard (ASTM 1876) by more than 40%.
Crack Protection: Blindside is thicker than most non asphalt based competitive products which gives it the stress-absorbing and elongation properties to maintain a watertight seal.
