TRM Flashing

$34.15
TERM® Non-Chemical Termite Barrier – Flashing with Moisture and Termite Exclusion - Polyguard

TRM Flashing

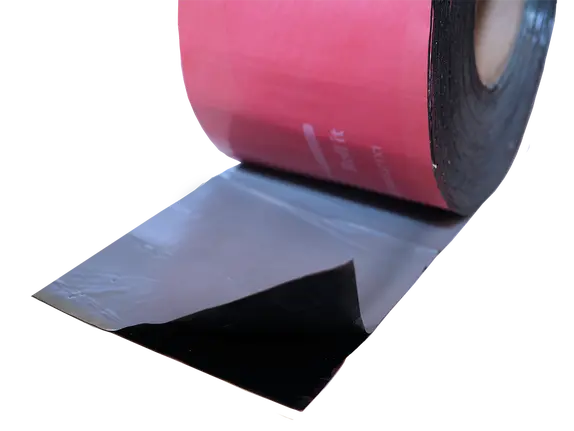

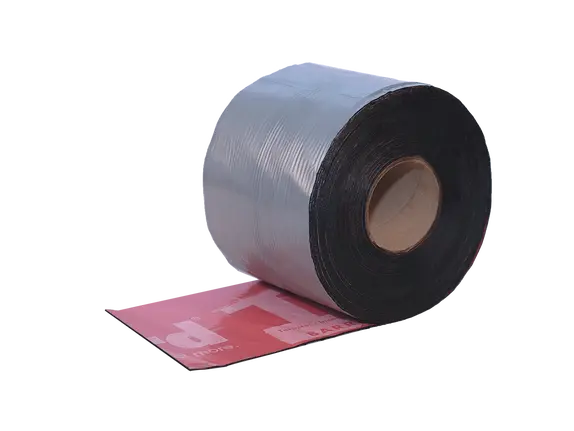

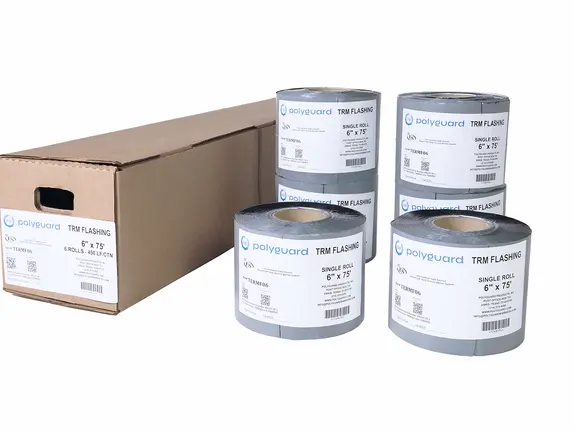

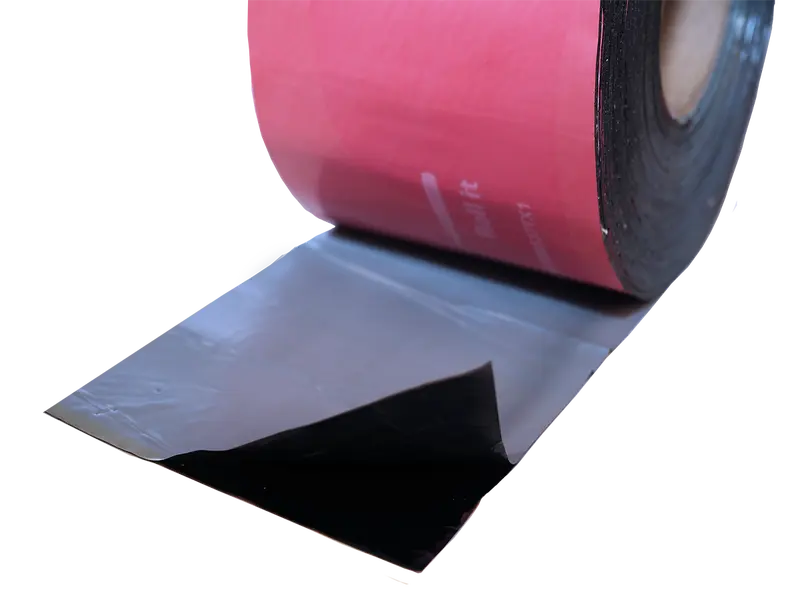

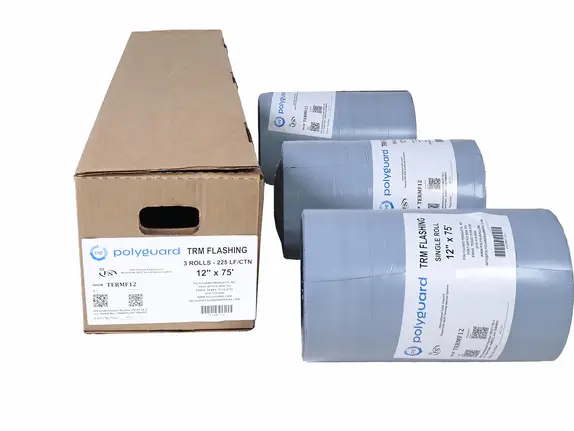

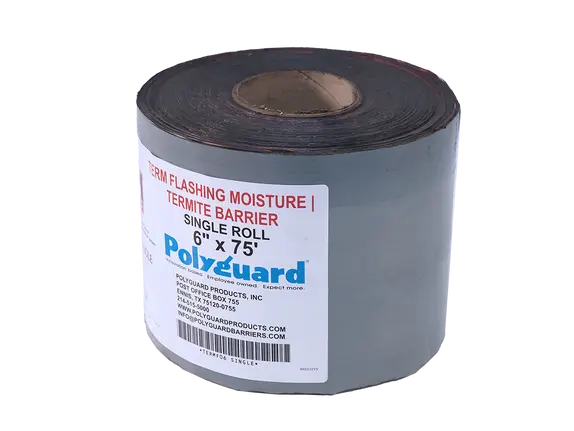

TRM Flashing is a flexible peel & stick membrane.
Size
4" x 75'
6" x 75'
9" x 75'
12" x 75'
18" x 75'
$34.15

Overview

TRM Flashing is a flexible peel & stick membrane.
Key Features of TRM Flashing:
  • Application Area: Specifically designed for the intersection of horizontal concrete slabs and exterior sheathing, a common termite entry point.
  • Protection: Acts as a barrier against air, moisture, and all pests, including termites, when properly integrated into the building envelope.
  • UV Resistance: Offers 30 days of UV protection before requiring coverage.
  • Certification: It is the only waterproofing membrane that meets ICC AC 380 (ICC-ESR 3632) Acceptance Criteria.
  • Flexible membrane ensuring adaptability to various construction details.
  • Recommended Primer: Use of a primer like Polyguard's 650 WB Liquid Adhesive is recommended for optimal adhesion.
TRM Flashing - Data Sheet
TRM Flashing - Product Overview Sheet
TRM Flashing/TRM UV2-40/TRM Sill - Guide Spec
TRM Flashing - HPD
TRM Flashing - SDS

Product Resources

Details - TRM Flashing/TRM UV2-40/TRM Sill

TRM Flashing/TRM UV2-40/TRM Sill - Detail Set - (FT1a-7b)
  • TERM
  • Detail(s)
TRM Flashing/Sill Flashing - Detail - Exterior Perimeter (FT1a)
  • TERM
  • Detail(s)
TRM Flashing/Sill Flashing - Detail - Exterior Perimeter at Balcony or Patio (FT1b)
  • TERM
  • Detail(s)
TRM Flashing/Sill Flashing - Detail - Water Termite Barrier Membrane Interior Framing (FT2)
  • TERM
  • Detail(s)
TRM Flashing - Detail - Installation Sequence (FT3)
  • TERM
  • Detail(s)
TRM Flashing over TRM Sill Flashing - Detail - In Cavity Wall (FT4a)
  • TERM
  • Detail(s)
TRM Flashing - Detail - In Cavity Wall (FT4b)
  • TERM
  • Detail(s)
TRM Flashing - Detail - Window Flashing (FT5)
  • TERM
  • Detail(s)
TRM Sill Flashing - Detail - Precast Wall w Steel Frame (FT6)
  • TERM
  • Detail(s)
TRM Sill Flashing - Detail - Stem Wall Transition to ICF Wall (FT7a)
  • TERM
  • Detail(s)
TRM Sill Flashing - Detail - Stem Wall Transition to ICF Wall (FT7b)
  • TERM
  • Detail(s)

Details - TRM Accessories

TRM Accessories - Detail Set - (AT1-10)
  • TERM
  • Detail(s)
TRM Flashing, TRM UV2-40 - Detail - As Thru Wall Flashing (AT1)
  • TERM
  • Detail(s)
TRM Weep & Vent - Detail - Installation in Masonry Wall (AT2)
  • TERM
  • Detail(s)
TRM Weep & Vent Barrier - Detail - Installation in Masonry Wall Isometric (AT3)
  • TERM
  • Detail(s)
TRM Sealant - Detail - For Above Slab Penetration (AT4)
  • TERM
  • Detail(s)
TRM Micromesh - Detail - Fabrication Sub-Assembly for TRM Bath Trap (AT5)
  • TERM
  • Detail(s)
TRM Particle Barrier - Detail - Penetration (AT6)
  • TERM
  • Detail(s)
TRM Particle Barrier - Detail - At TRM Bath Trap (AT7)
  • TERM
  • Detail(s)
TRM Particle Barrier - Detail - At TRM Bath Trap or Mop Sink (AT8)
  • TERM
  • Detail(s)
TRM Particle Barrier - Detail - Under Slab (AT9)
  • TERM
  • Detail(s)
TRM Particle Barrier - Detail - Under Slab Mow Strip (AT10)
  • TERM
  • Detail(s)

Features & Benefits

Strong, pliable, self-adhesive sheet flashing
4-mil high density polyethylene film bonded to 36 mils of sealant = 40 mils thick
Formulated for low temperature application down to 30°F (-1°C)
For flashing and seam application, available roll widths are 4", 6", 9", 12” & 18”
All rolls are 75’ long
The only physical termite barrier with over 2 decades of testing and an evaluation report by the ICC (International Code Council) AC 380 ESR 3632
30-day UV exposure
ICF (Insulated Concrete Forms) Compatible
