TRM Sill

TRM Sill is a “peel and stick” supplemental non-chemical termite barrier. It is installed directly on the concrete underneath the sill plate. It blocks entry of subterranean termites at this common entry point. It also acts as a barrier to moisture and energy leaks.

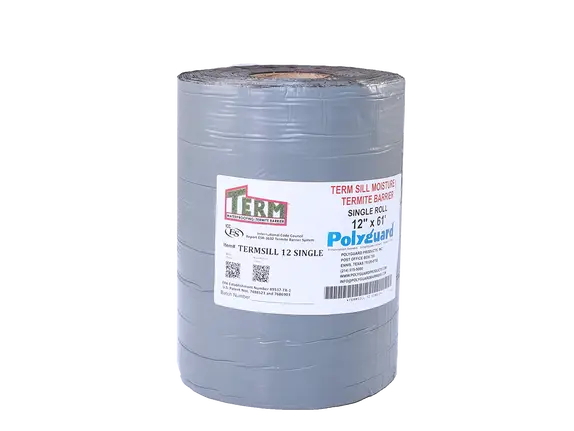

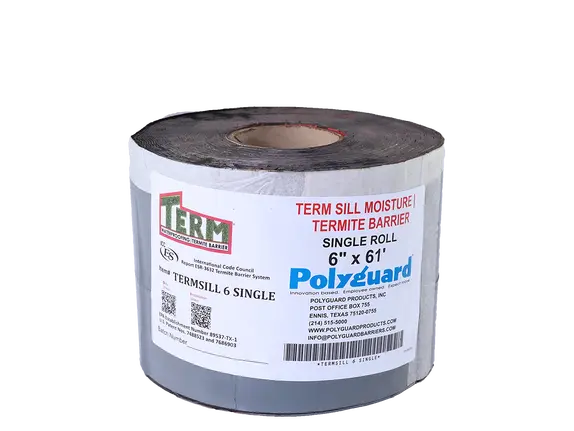

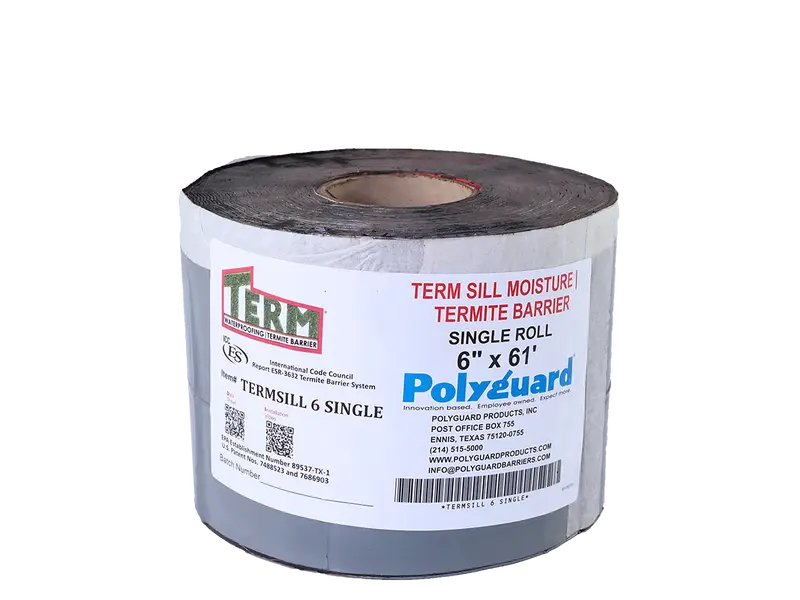

TRM Sill can block entry at the exposed underside of the sill plate. TRM Sill comes in 66.7′ rolls, with roll widths of 6", 7", 9" and 12".

The use of a primer, such as Polyguard's 650 WB Liquid Adhesive, is recommended for superior adhesion of TRM Sill.

Return Policy
TERM SILL 8 IN P9300118 edit CU
TERM SILL 8 IN P9300118 edit CU
TERM SILL 12 IN P9300152 edit
TERM SILL 7 IN P9300104 edit
TERM SILL 12 IN P9300166 edit
TERM SILL 6 IN P9300114 edit CU
TERM SILL 10 IN P9300119 edit CU
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

Each roll of TRM Sill protects 66.7' of sill plate

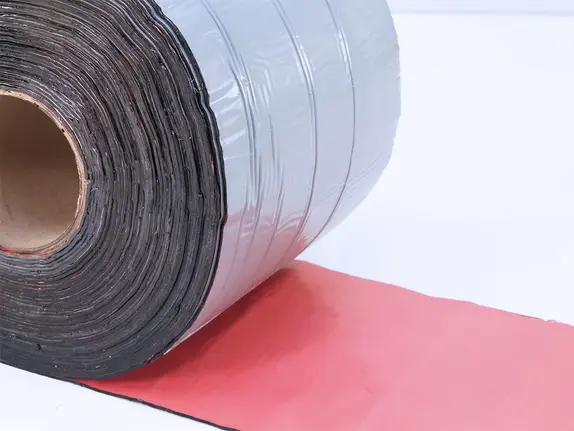

4-mil high density polyethylene film bonded to 64 mils of sealant = 68 mils thick
Roll widths are 6”, 7”, 9" & 12"
Formulated from polymer asphalt which has been upgraded to incorporate a nonchemical termite and insect barrier
The sealant is laminated to a high strength and puncture resistant polyethylene backing
The only physical termite barrier with over 2 decades of testing and an evaluation report by the ICC (Internation Code Council) AC 380 ESR 3632
30 day UV exposure

Product Resources

Resource Icon
TRM Sill - Data Sheet
Resource Icon
TRM Sill - Product Overview Sheet
Resource Icon
TRM Flashing/TRM UV2-40/TRM Sill - Guide Spec
Resource Icon
TRM Sill - HPD
Resource Icon
TRM Sill - SDS

Product Details

TRM Flashing/TRM UV2-40/TRM Sill - Detail Set - (FT1a-7b)
PDF
TRM Flashing/Sill Flashing - Detail - Exterior Perimeter (FT1a)
TRM Flashing/Sill Flashing - Detail - Exterior Perimeter at Balcony or Patio (FT1b)
TRM Flashing/Sill Flashing - Detail - Water Termite Barrier Membrane Interior Framing (FT2)
TRM Flashing - Detail - Installation Sequence (FT3)
TRM Flashing over TRM Sill Flashing - Detail - In Cavity Wall (FT4a)
TRM Flashing - Detail - In Cavity Wall (FT4b)
TRM Flashing - Detail - Window Flashing (FT5)
TRM Sill Flashing - Detail - Precast Wall w Steel Frame (FT6)
TRM Sill Flashing - Detail - Stem Wall Transition to ICF Wall (FT7a)
TRM Sill Flashing - Detail - Stem Wall Transition to ICF Wall (FT7b)
