TERM Isolation Joint | Termite Barrier

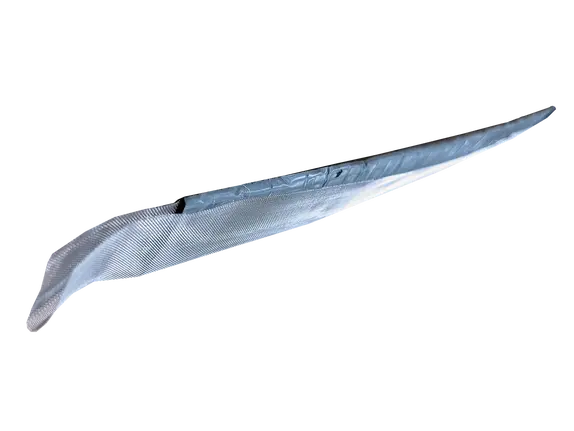

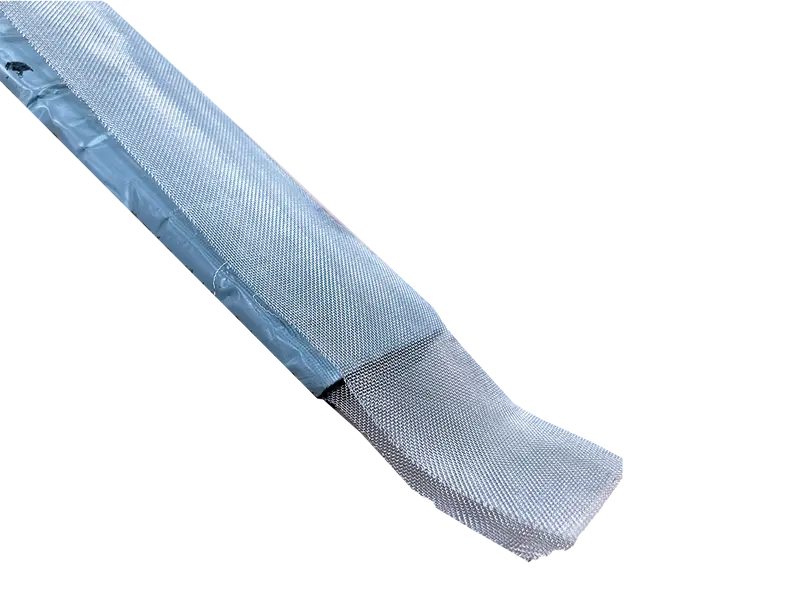

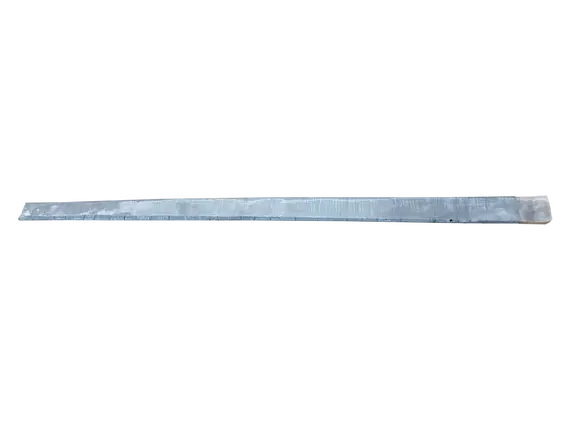

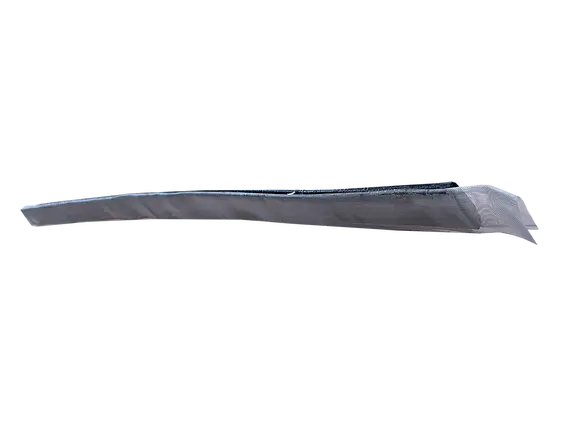

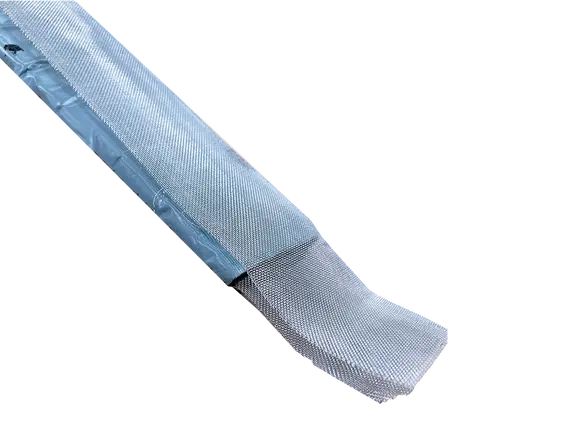

TERM Isolation Joint Barrier is a “peel and stick” termite barrier composite used for sealing isolation joints (cold joints) before pour of a new slab which butts against an interior slab. Ideally installed above any re-bar on the existing concrete side of the new pour. After new concrete is placed, a UV stable sealant or caulking should be used on top of the joint.

thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

Non-structural barrier
Acts as a barrier to termites entering the structure through cold joints
Consists of a laminated elastomeric membrane which has a TERM Sealant Barrier adhesive on both sides
Total thickness is a nominal 3/8”
Roll height is 2” (.102 cm)
Length is 4’ (2.44 m)

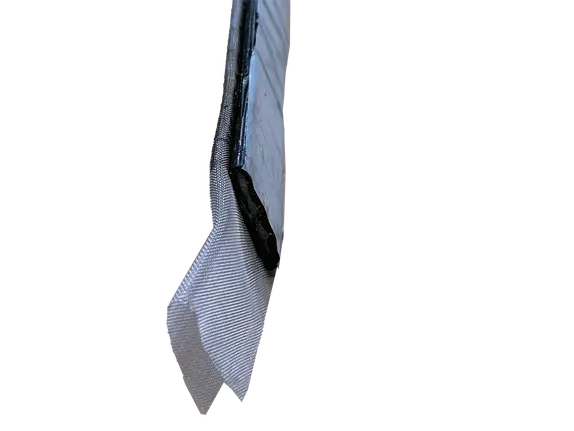

Embedded within the TERM Isolation Joint Barrier is a 4” wide stainless steel screen, with aperture opening of 0.018”
Adhesive faces are covered by disposable treated release sheet, which can be peeled away

Product Resources

Resource Icon
Guide Spec 071326 Isolation Joint with Waterproofing and Non-Chemical Termite Barrier
Resource Icon
TERM | Isolation Joint Barrier - Data Sheet
