VaporGuard™ Tape

VaporGuard™ Butyl Tape is a non-curing elastomer developed for use as a vapor stop on sub-freezing insulation systems. This product provides excellent cold temperature flexibility at -20°F. System design includes installation under the insulation at terminations and in-line vapor stop locations, or expansion joints. VaporGuard retards moisture ingress along the pipe and into the insulation system at terminations and insulation joints.

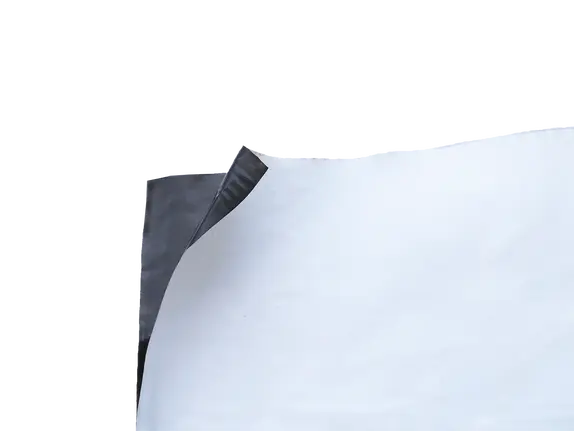

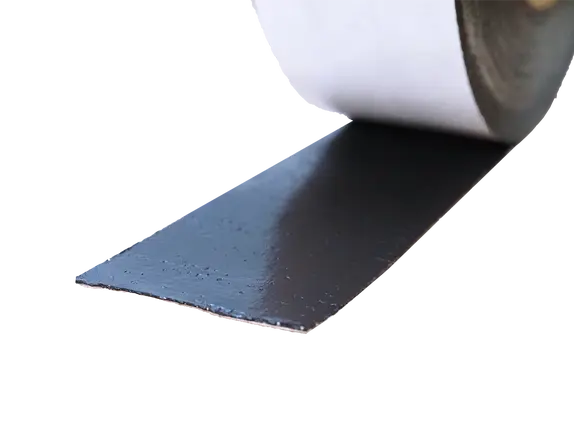

All material is extruded onto removable release paper backing to facilitate handling. To use, material is pressed into place on one surface. The paper is stripped off, and the second surface is brought into contact with the exposed surface.

VaporGuard is available in 2 convenient sizes:

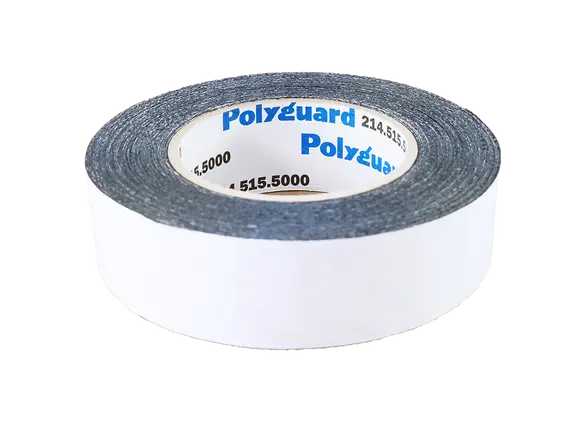

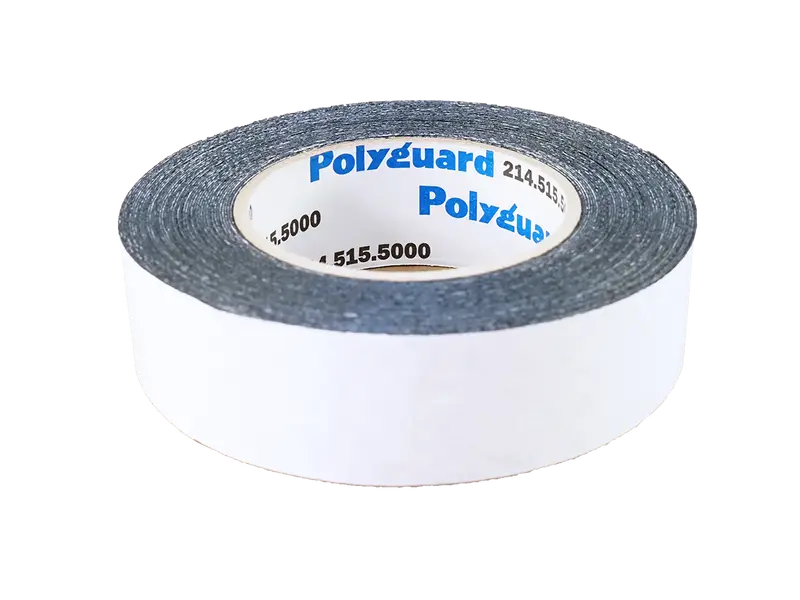

1-1/4" x 100' extruded size (10/case), and

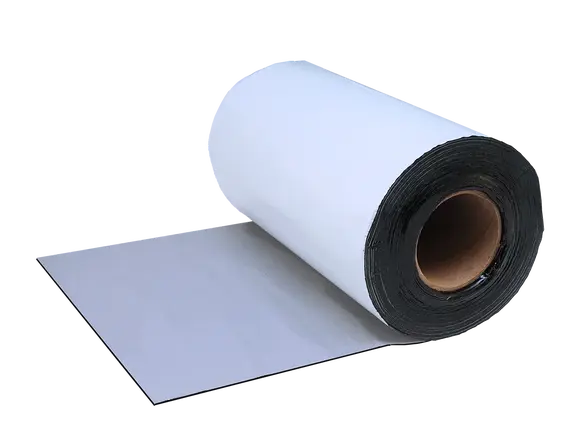

12" x 40' extruded size (4/case).
P9300020 edit
Vapor Guard 12 IN P9300010 edit
Vapor Guard 12 IN P9300007 edit
P9300003
P9300021
P9300013
P9300022 edit
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview
thumbnail preview

Features & Benefits

Non-curing elastomer
Provides vapor stop on sub-freezing insulation systems
Excellent cold temperature flexibility at -20°F.
Used at terminations, in-line vapor stops & expansion joint locations
Retards moisture
Easy to remove release paper backing
Presses into place on surface
Available in 1-1/4" x 100' and 12" x 40' extruded sizes

Product Resources

Resource Icon
VaporGuard Product Information Sheet
Resource Icon
Vaporguard SDS
Resource Icon
Membranes & Jacketing - Product Matrix
Resource Icon
VaporGuard™ - Detail - Vapor Stop
Resource Icon
VaporGuard™ - Detail - Insulation Stop
Resource Icon
VaporGuard™ - Detail - Expansion Joint
Resource Icon
VaporGuard™ - Detail - Ammonia
